Features

Advanced 802.11n Industrial Wireless Solution

802.11a/b/g/n compliant AP/bridge/client for flexible deployment
Software optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)
Supports 60 clients connected concurrently
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

AeroMag supports error-free setup of your industrial applications' fundamental WLAN settings
Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client Mode)
Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between APs and their clients

Industrial Ruggedness

Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
Hazardous location wireless communication with Class I Div. II and ATEX Zone 2 certifications
-40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

Wireless Network Management With MXview Wireless

Dynamic topology view shows the status of wireless links and connection changes at a glance
Visual, interactive roaming playback function to review the roaming history of clients
Detailed device information and performance indicator charts for individual AP and client devices

Specifications

WLAN Interface
WLAN Standards	802.11a/b/g/n 802.11i Wireless Security
Modulation Type	DSSS OFDM MIMO-OFDM
Frequency Band for US (20 MHz operating channels)	2.412 to 2.462 GHz（11channels） 5.180 to 5.240 GHz（4channels） 5.260 to 5.320 GHz（4channels） 5.500 to 5.700 GHz（11 channels） 5.745 to 5.825 GHz（5 channels）
Frequency Band for EU (20 MHz operating channels)	2.412 to 2.472 GHz（13channels） 5.180 to 5.240 GHz（4channels） 5.260 to 5.320 GHz（4channels） 5.500 to 5.700 GHz（11 channels）
Frequency Band for JP (20 MHz operating channels)	2.412 to 2.484 GHz（14channels） 5.180 to 5.240 GHz（4channels） 5.260 to 5.320 GHz（4channels） 5.500 to 5.700 GHz（11 channels）
Wireless Security	WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
Transmission Rate	802.11b：1 to 11 Mbps 802.11a/g：6 to 54 Mbps 802.11n：6.5 to 300 Mbps
Transmitter Power for 802.11a	23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)	23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power for 802.11b	26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g	23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)	23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power	US EU JP 2.4 GHz 26 dBm 18 dBm 18 dBm 5 GHz (UNII-1) 23 dBm 21 dBm 21 dBm 5 GHz (UNII-2) 23 dBm 21 dBm 21 dBm 5 GHz (UNII-2e) 23 dBm 23 dBm 23 dBm 5 GHz (UNII-3) 23 dBm – – Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)	Typ.-90 @ 6 Mbps Typ.-88 @ 9 Mbps Typ.-88 @ 12 Mbps Typ.-85 @ 18 Mbps Typ.-81 @ 24 Mbps Typ.-78 @ 36 Mbps Typ.-74 @ 48 Mbps Typ.-72 @ 54 Mbps Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)）	Typ.-69 dBm @ MCS7 20 MHz Typ.-71 dBm @ MCS15 20 MHz Typ.-63 dBm @ MCS7 40 MHz Typ.-68 dBm @ MCS15 40 MHz Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)	Typ.-93 dBm @ 1 Mbps Typ.-93 dBm @ 2 Mbps Typ.-93 dBm @ 5.5 Mbps Typ.-88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)	Typ.-88 dBm @ 6 Mbps Typ.-86 dBm @ 9 Mbps Typ.-85 dBm @ 12 Mbps Typ.-85 dBm @ 18 Mbps Typ.-85 dBm @ 24 Mbps Typ.-82 dBm @ 36 Mbps Typ.-78 dBm @ 48 Mbps Typ.-74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)	Typ.-70 dBm @ MCS7 20 MHz Typ.-69 dBm @ MCS15 20 MHz Typ.-67 dBm @ MCS7 40 MHz Typ.-67 dBm @ MCS15 40 MHz
WLAN Operation Mode	Access point, Client, Client-Router, Master, Slave, Sniffer

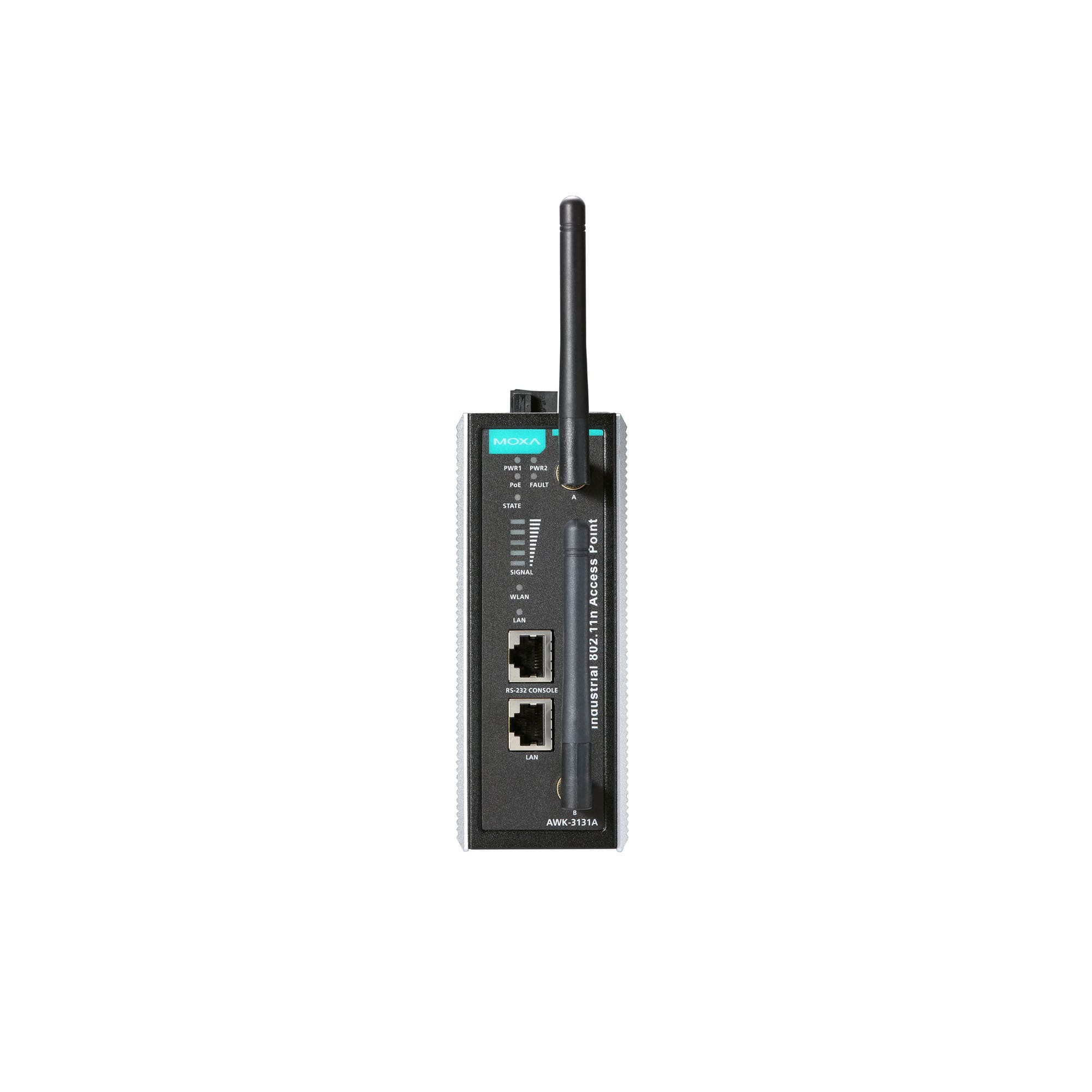

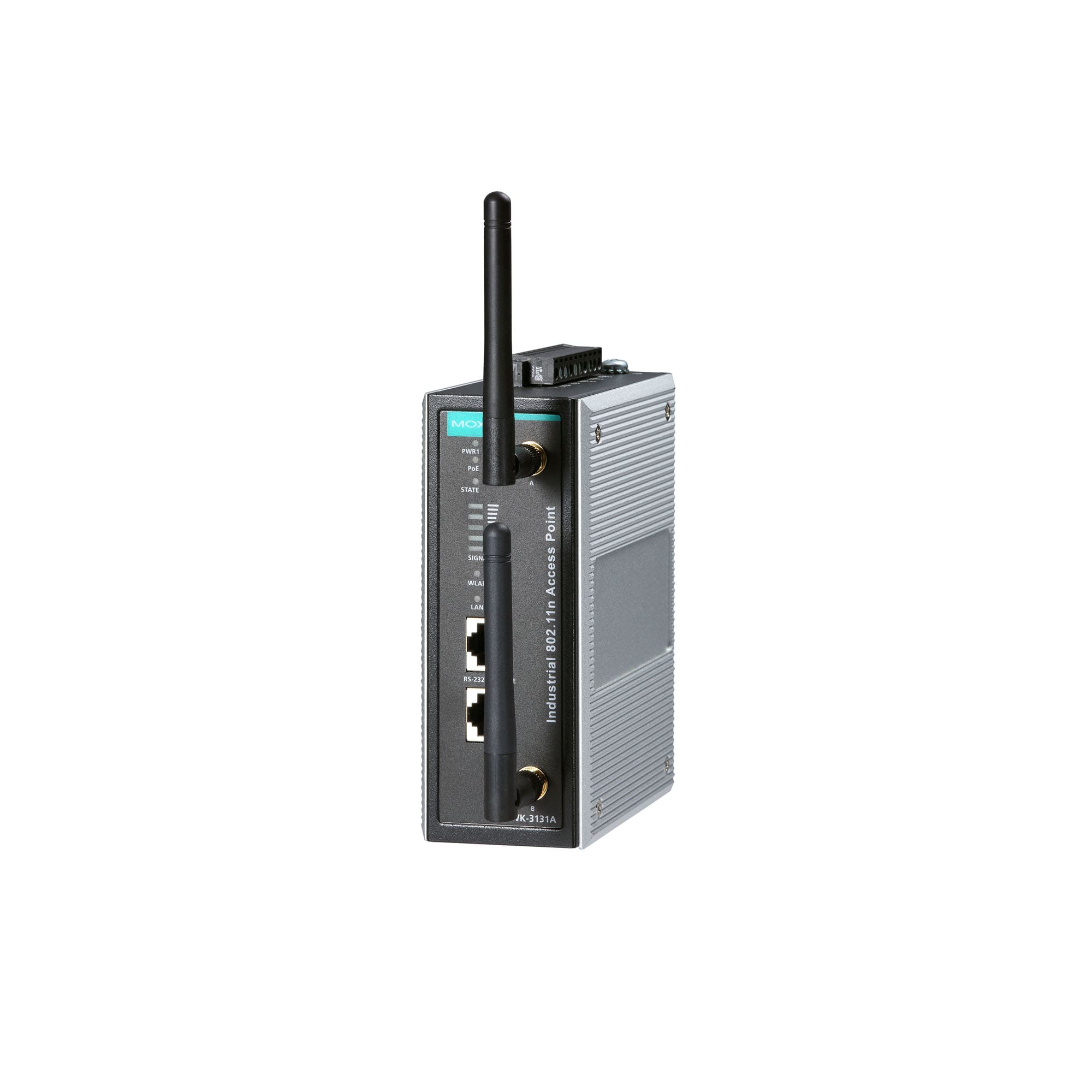

Antenna	External, 2/2 dBi, Omni-directional
Antenna Connectors	2 RP-SMA female
Ethernet Interface
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	1
Ethernet Software Features
Management	DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
Routing	Port forwarding, Static Route, NAT
Redundancy Protocols	RSTP, STP
Security	HTTPS/SSL、RADIUS、SSH
Time Management	SNTP Client
Firewall
Filter	ICMP, MAC address, IP protocol, Port-based
Serial Interface
Console Console	RS-232，8-pin RJ45
LED Interface
LED Indicators	PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN
Input／Output Interface
Digital Inputs	2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0
Alarm Contact Channels	elay output with current carrying capacity of 1 A @ 24 VDC
Buttons	Reset button
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	52.7 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
Weight	860 g (1.9 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
Input Current	0.56 A @ 12 VDC，0.14 A @ 48 VDC
Input Voltage	12 to 48 VDC
Power Connector	1 removable 10-contact terminal block(s)
Power Consumption	7.2 W (max.)
Reverse Polarity Protection	Supported
Environmental Limits
Operating Temperature	Standard Models：0 to 60°C（32 to 140°F） Wide Temp. Models：-40 to 75°C（-40 to 167°F）
Storage Temperature (package included)	-40 to 85°C（-40 to 185°F）
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32，FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
Hazardous Locations	ATEX, Class I Division 2, IECEx
Radio	EN 300 328、EN 301 489-1/17、EN 301 893、FCC ID SLE-WAPN008、ANATEL、MIC、NCC、RCM、SRRC、WPC、KC、RCM
Safety	EN 60950-1，UL 60950-1
Vibration	IEC 60068-2-6
MTBF
Time	749,476 hrs
Standards	Telcordia SR332
Warranty
Warranty Period	5years
