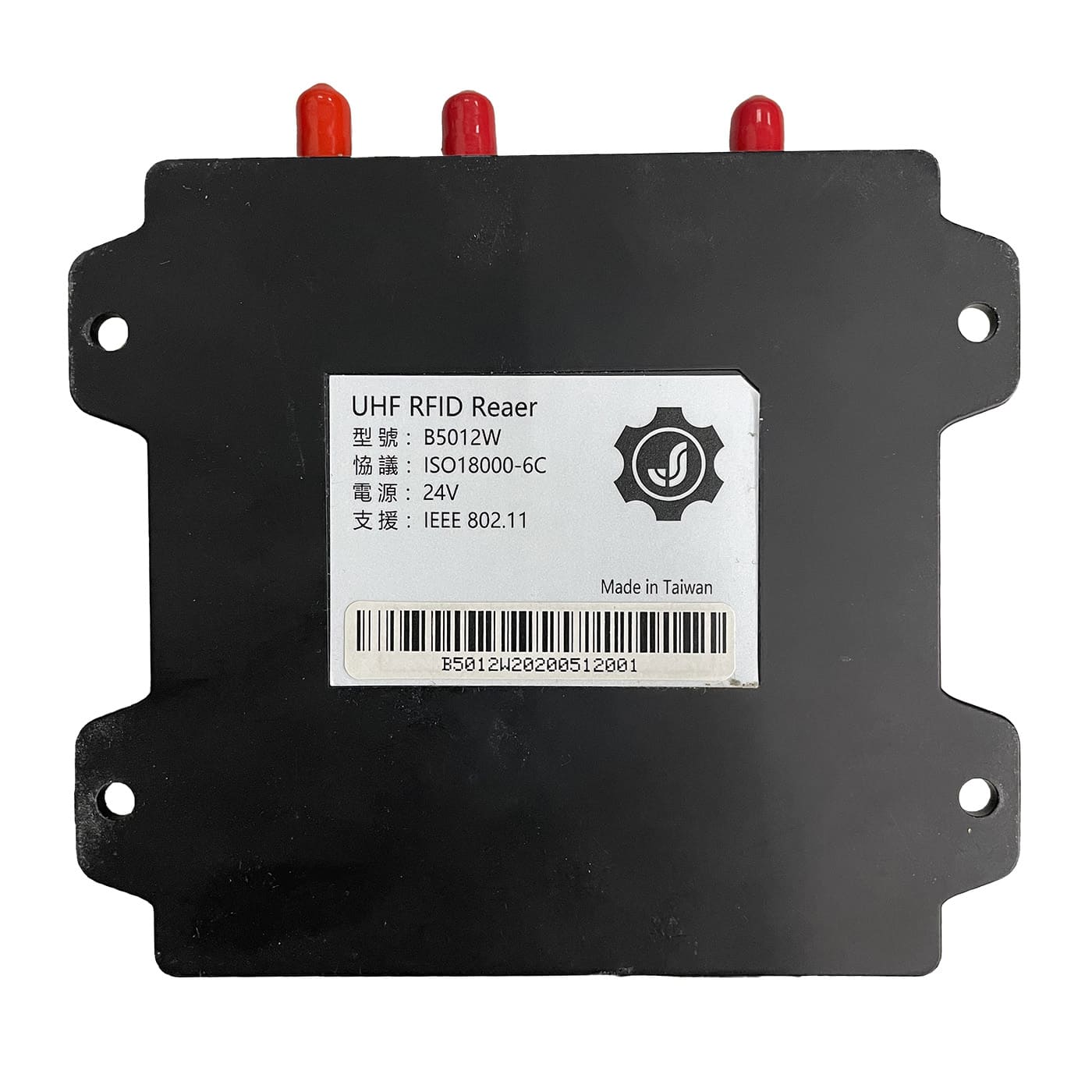

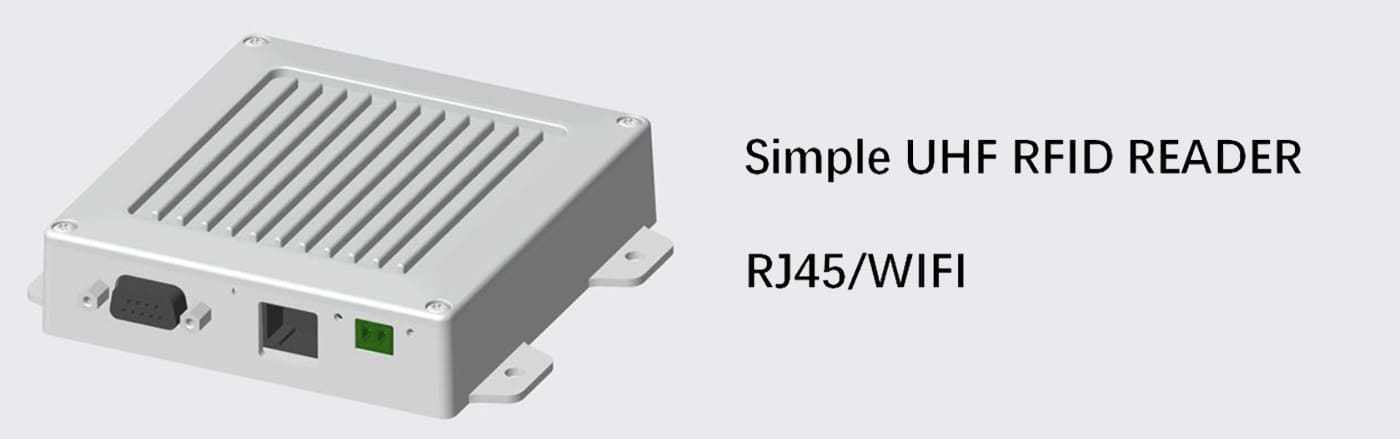

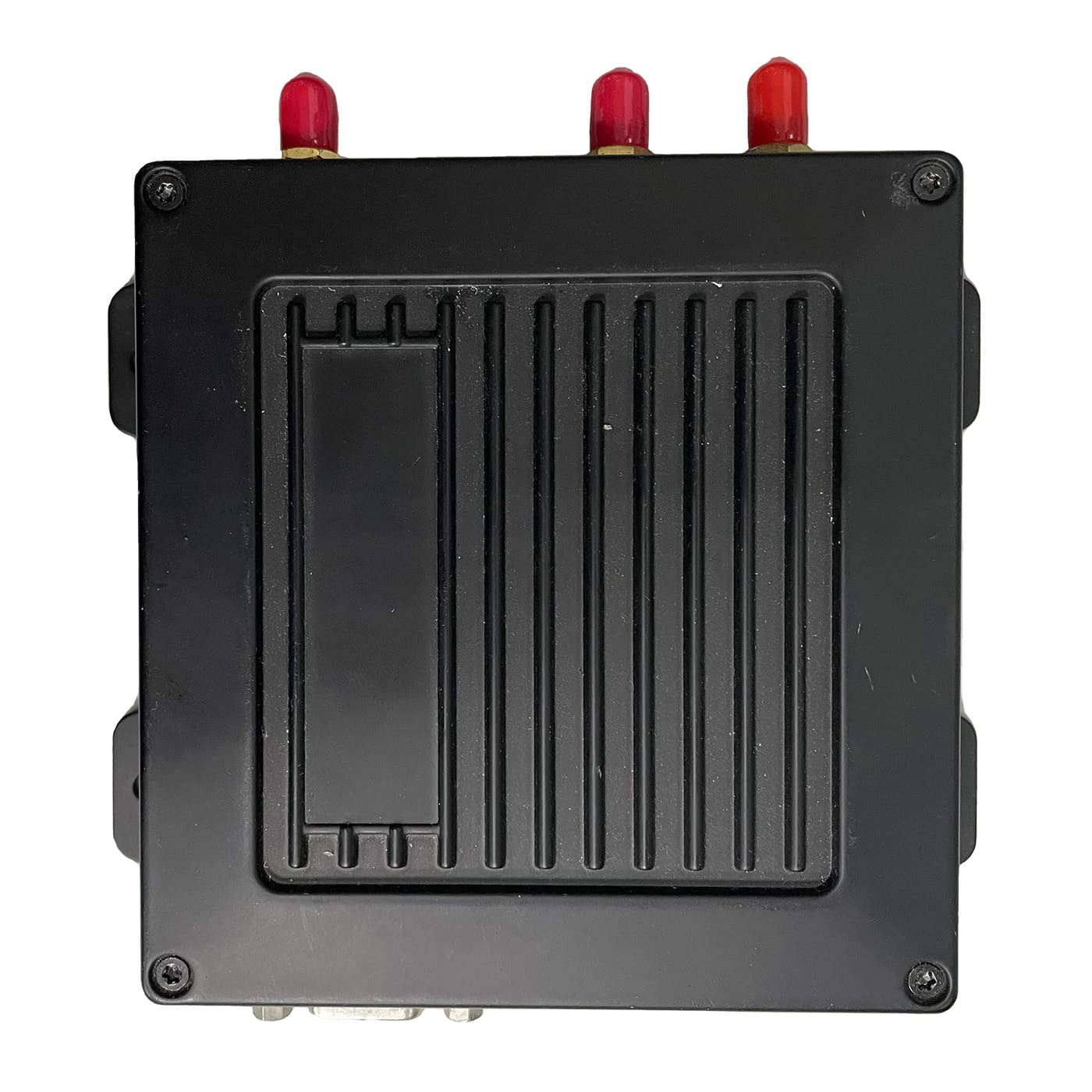

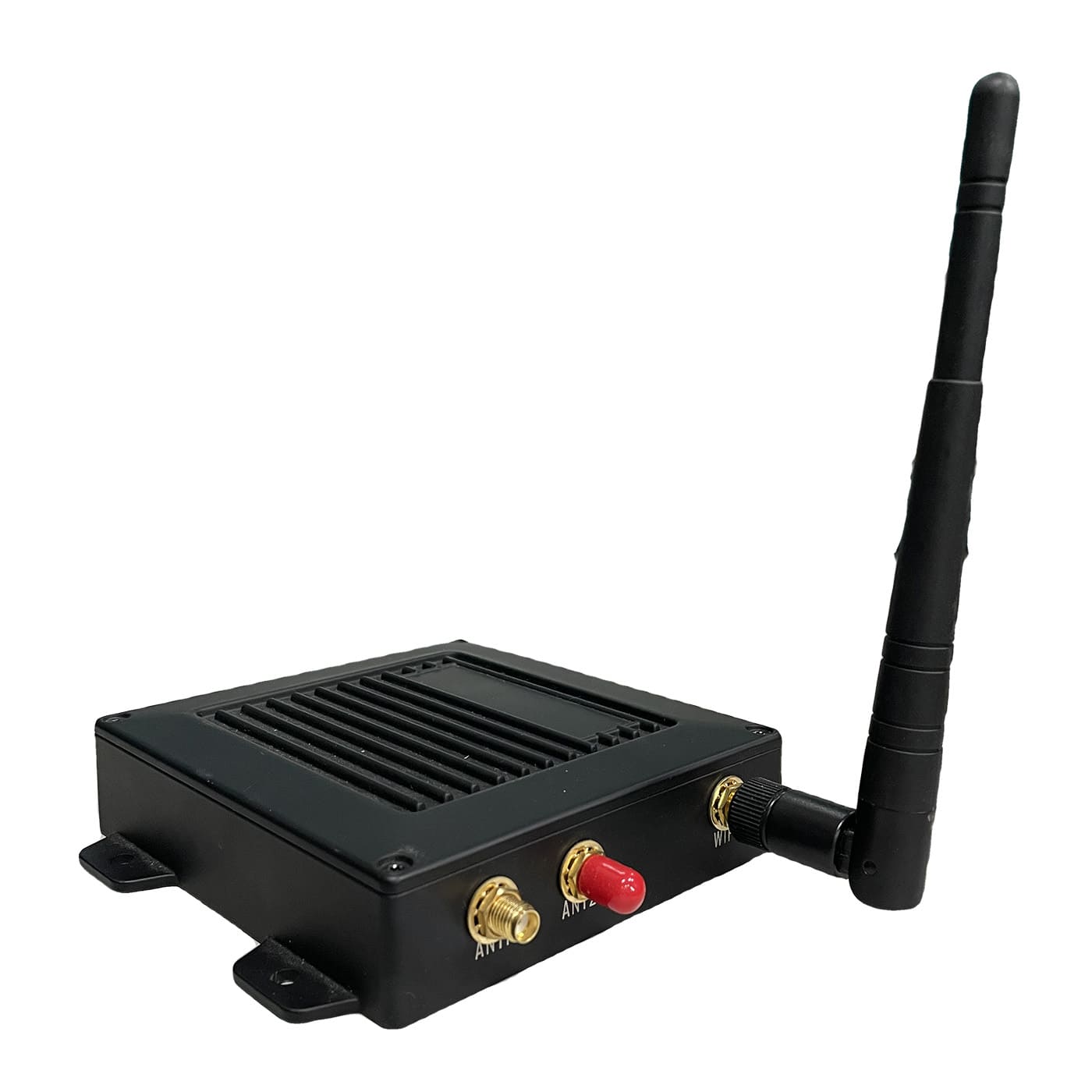

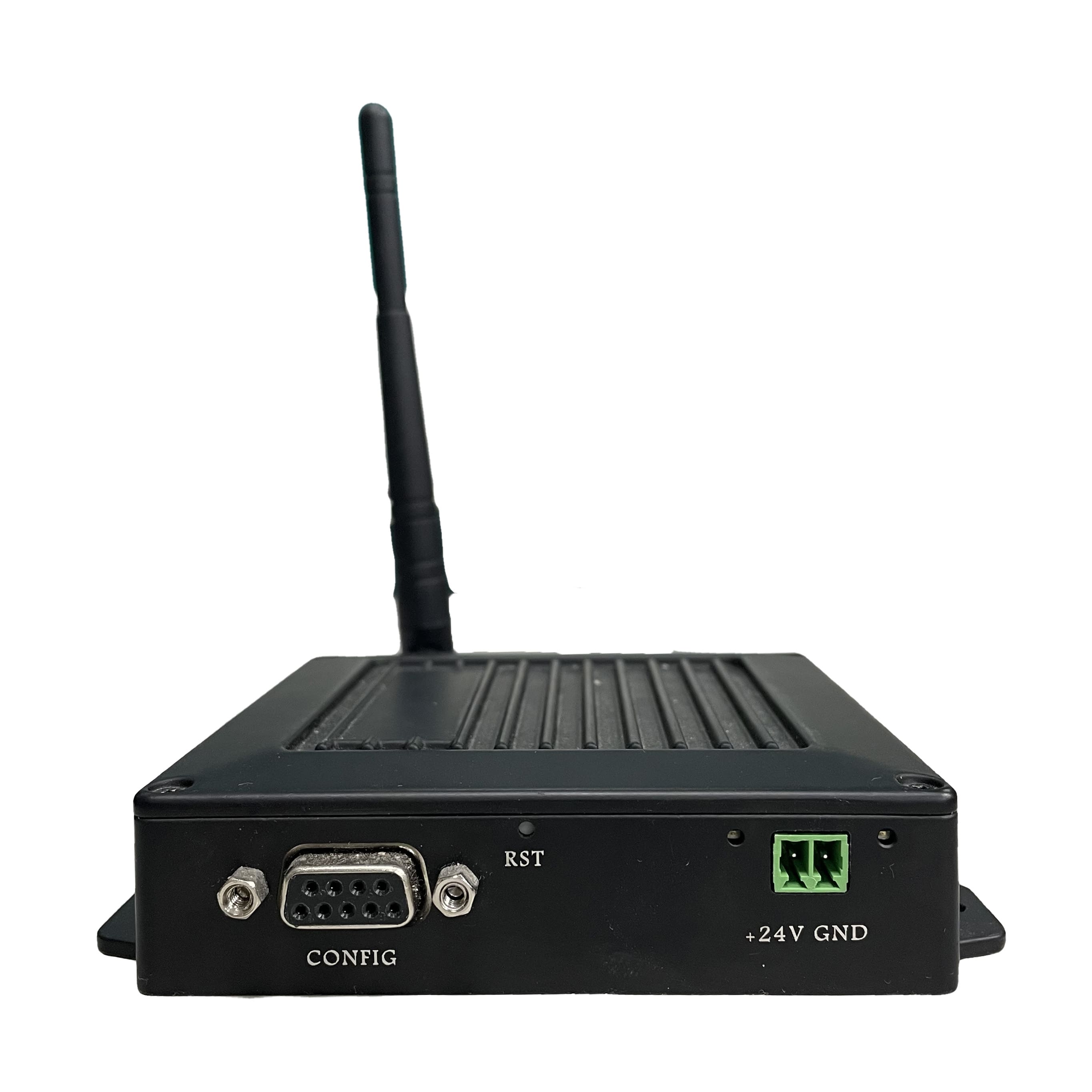

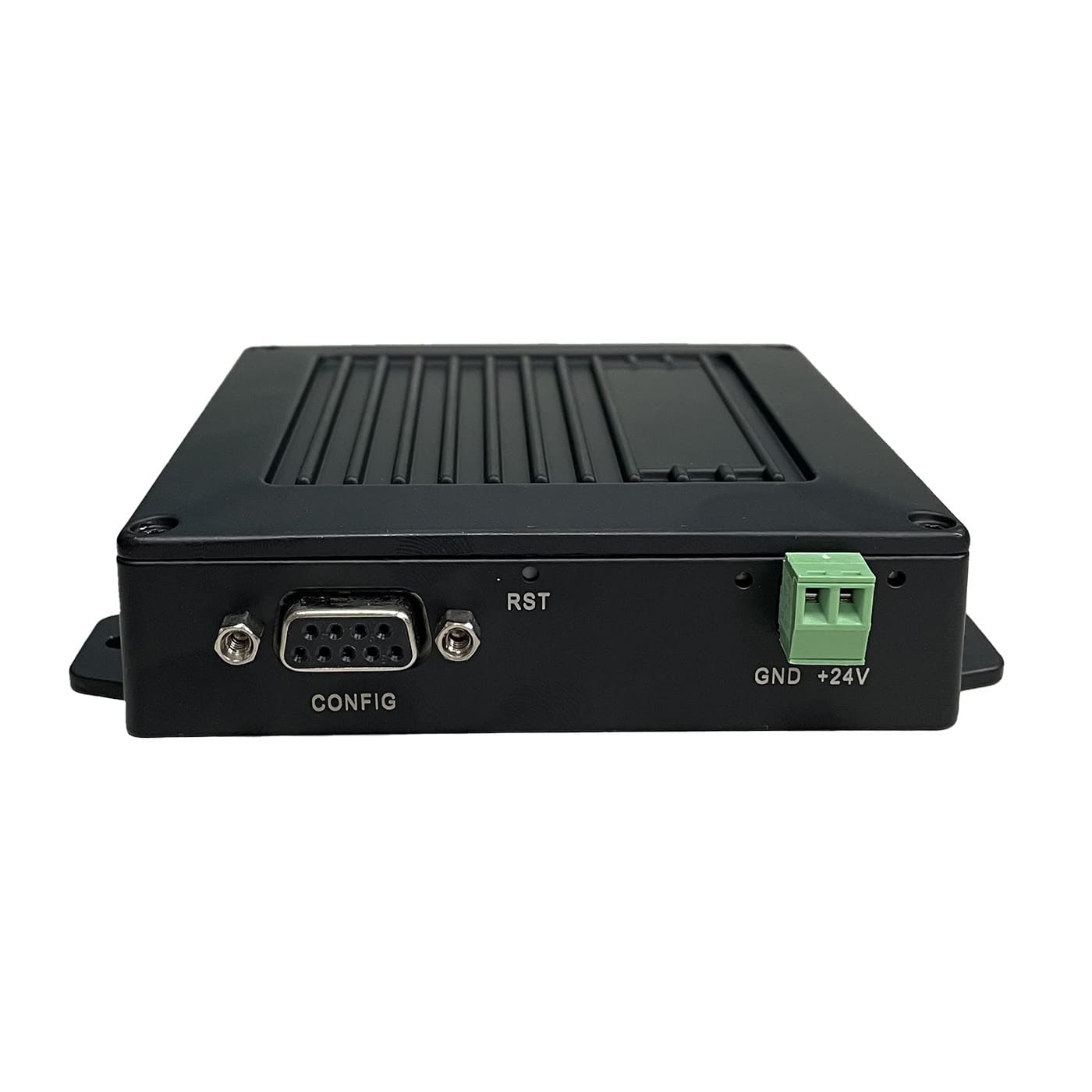

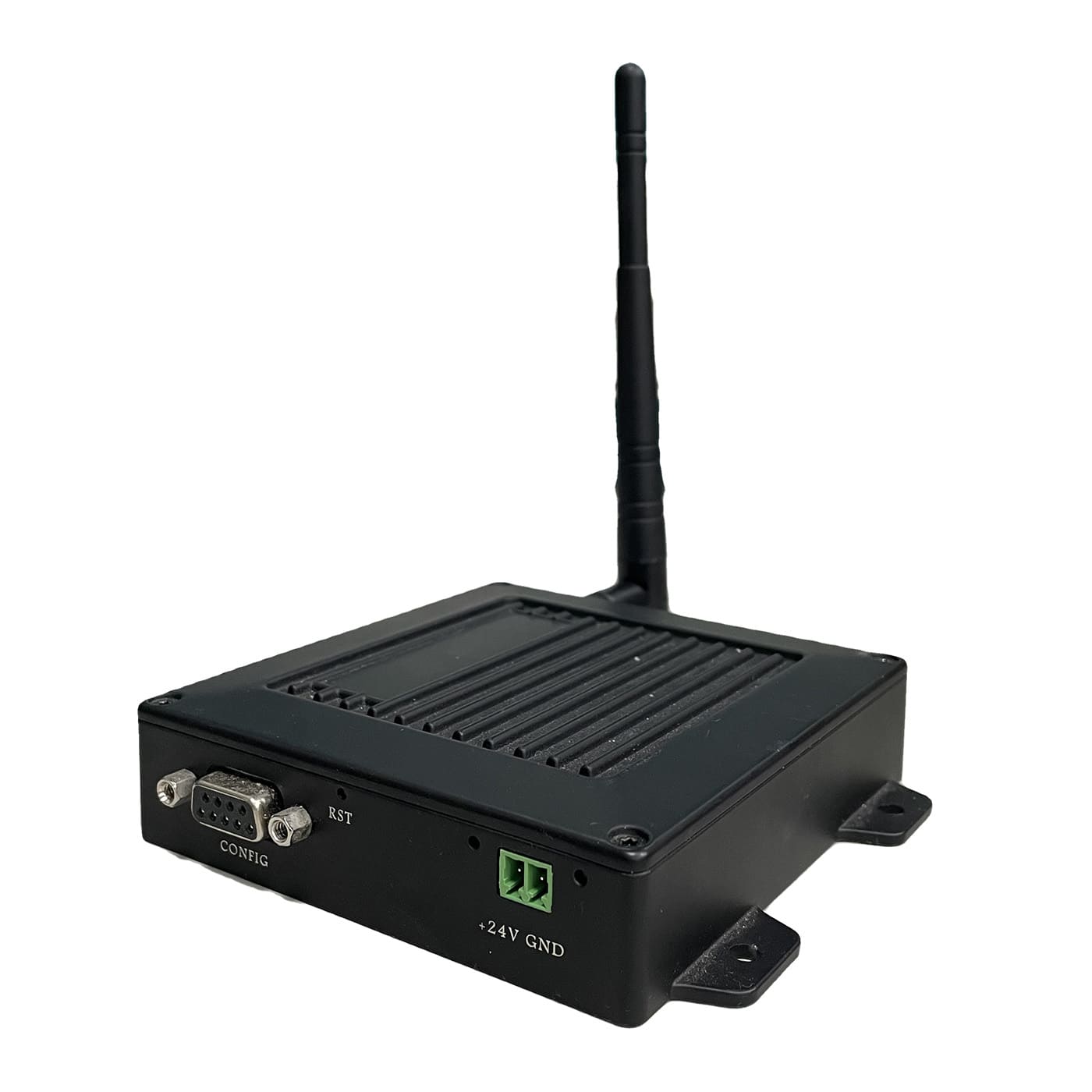

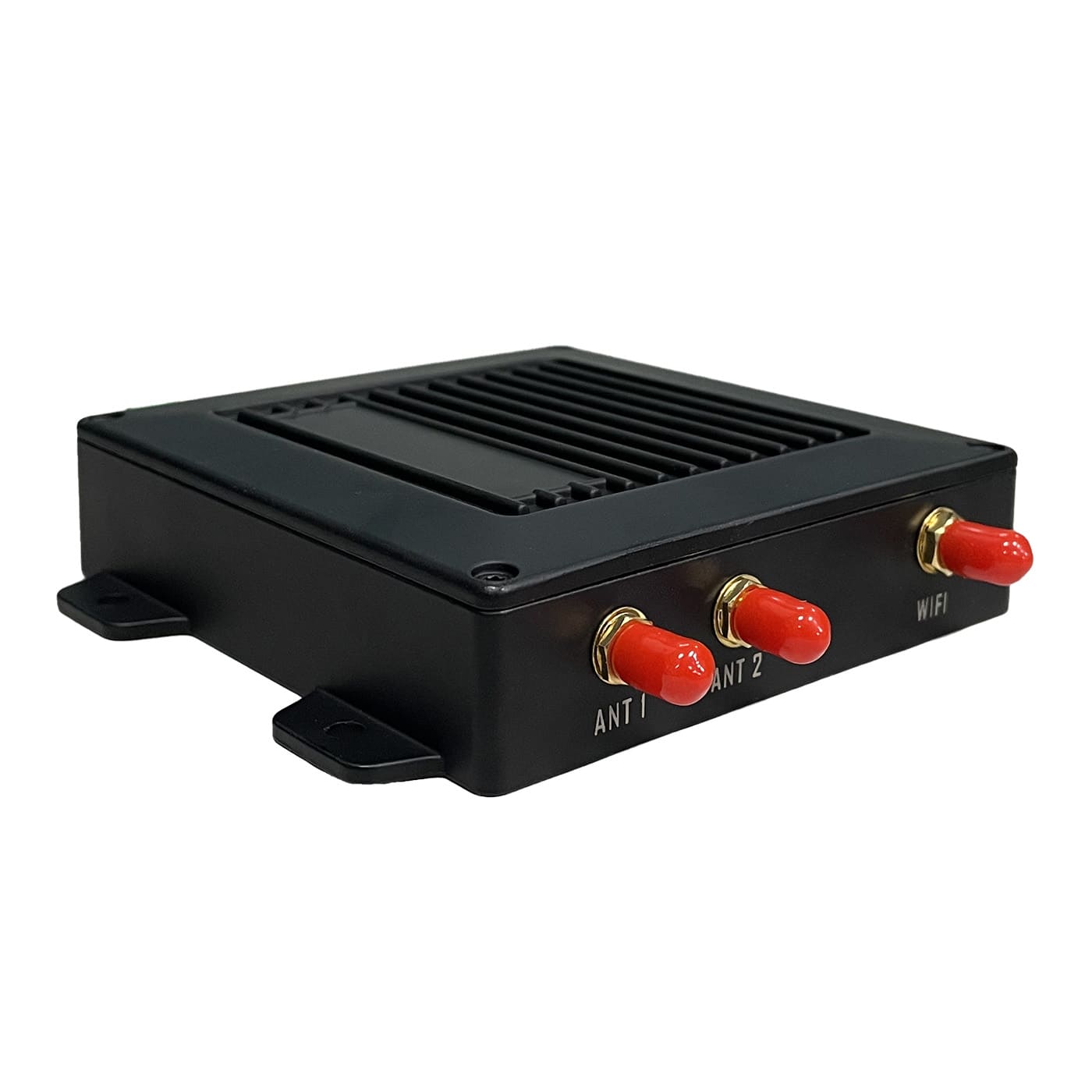

【JSUN】UHF RFID Reader-(B5012W)

•Build-in PHYCHIPS UHF RFID module.
•Providing Wi-Fi interface.
•Mini and exquisite appearance, easily for installation.
•Embedded high speed processor, able to be self-detect errors.
•Widely applied to Intelligent Assembly Line, Distributing Center and those fields of simple RFID Detection.

Features
Wi-Fi Parameters
Specifications

Features

•Build-in PHYCHIPS UHF RFID module.
•Providing Wi-Fi interface.
•Mini and exquisite appearance, easily for installation.
•Embedded high speed processor, able to be self-detect errors.
•Widely applied to Intelligent Assembly Line, Distributing Center and those fields of simple RFID Detection.

Dimension

Wi-Fi Parameters

Standard	802.11 b/g/n
Power Output	17.0dBm @1DSSS 17.25dBm @11CCK 13.5dBm @54OFDM
Number of Antenna	Build-in a connector for External antenna
Support Wireless Type	STA、AP
Security Mechanism	WEP WPA-PSK WPA2-PSK
Encryption mode	TKIP，AES，TKIP/AES
DHCP	support
Configuration Method	AT Command

Specifications

Read/Write Chip	PHYCHIPS
Interface	WI-FI 802.11b/g/n RSSET key
Number of Antenna	Build-in 2 connectors for external antenna
Protocol	ISO18000‐6C/ EPC Global C1G2
Frequency Range	NCC FCC CCC
Power Output	0dBm ~ +24dBm
Power Input	DC power supply
Power Consumption	MAX：2.7W，Standby：0.9W
Input Voltage	12~24 VDC@(DC power supply)
Operating Temperature	‐20°C~+50°C
Storage Temperature	‐40°C~+70°C
Operating Humility	10%~90%
SDK	Microsoft .NET API、Command Set

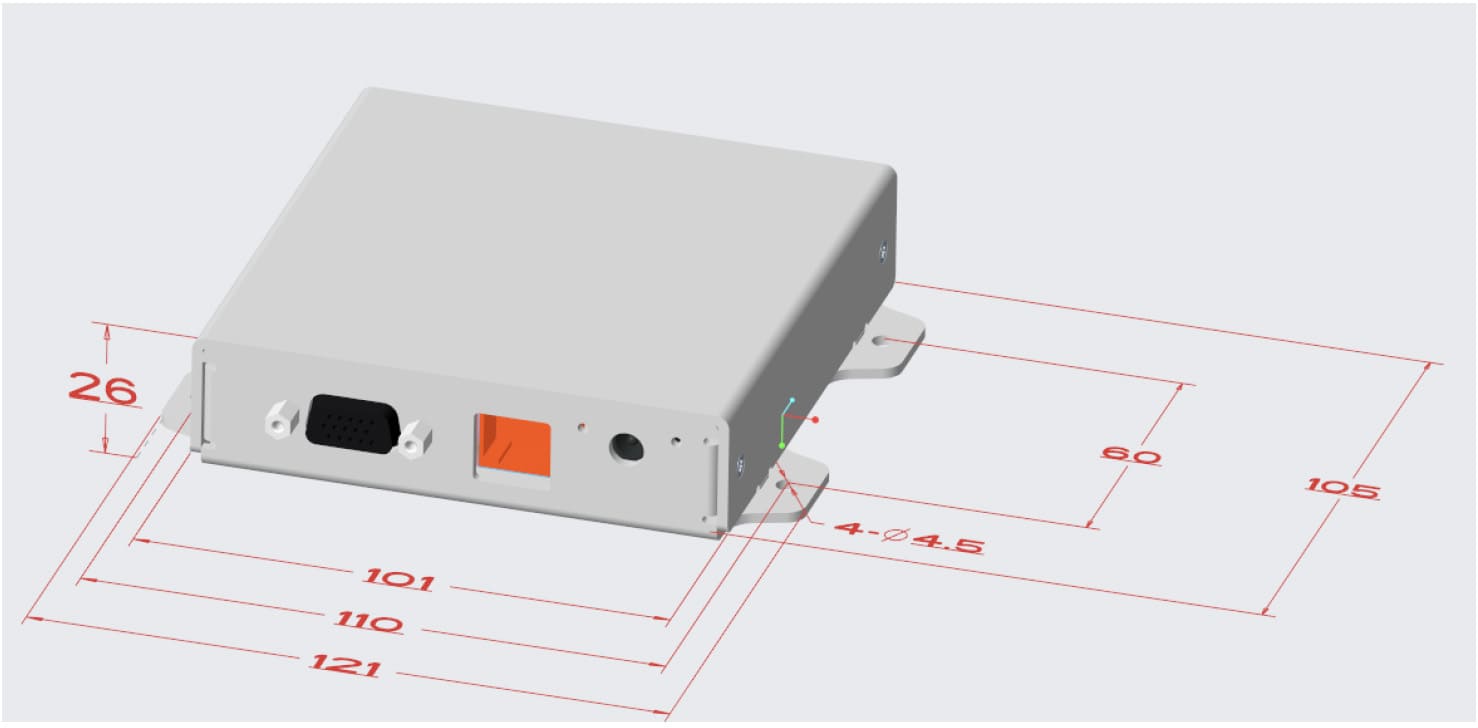

Dimension	121(L)x 105(W)x 26(H)mm
